The Executable Object Command Language

Contents

Introduction

This book is about how to construct executable models. The previous sections have described with super-structure for creating these models. An action language is required to make models expressed in this super-stucture executable. The action language used in the rest of this book is called XOCL (eXectuable Object Command Language). It is one of the languages that can be embedded in the super-structure via the Performable class.

There are many other languages that could be used with the super-structure, XOCL is general-purpose, other languages may be domain specific in the sense that their features would be familiar to a domain export or be tailored to a specific type of activity. Fortunately, XOCL is really all that is required since it has been designed to be extensible. XOCL is fully modelled within the super-structure: all of its features including syntax and execution semantics are defined using the super-structure and XOCL. Therefore, if XOCL is not the most suitable choice for a given application then it can be extended or even replaced.

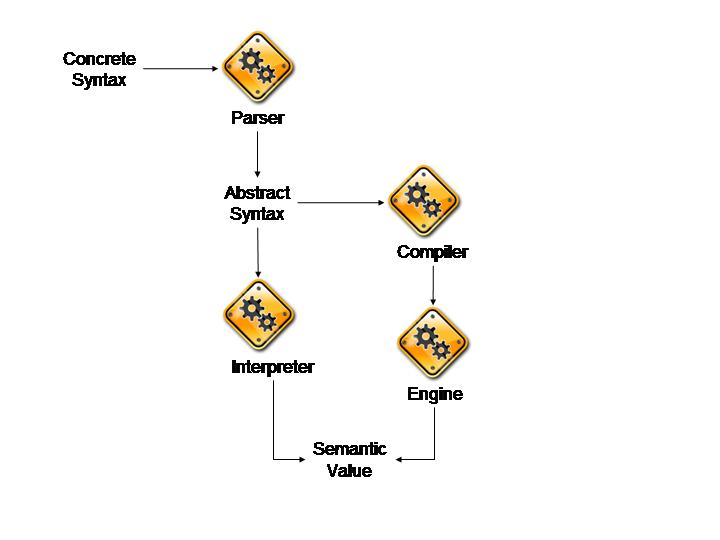

This chapter defines the basic components of XOCL. It describes how XOCL fits into the super-structure and the key language constructs. The language features are given using examples. The following section describes how XOCL can be viewed as a model within the super-structure and how to extend it.

To top.

Working With Basic Elements

The simplest components of XOCL are constants (notice that comments follow // on a single line or within /* and */ over multiple lines as in Java):
10             // An integer.
3.14159 // A float.
true // A boolean.
"Hello World" // A string.
Basic operators and precedences are defined as follows:
context Root
@Operation prec(op)
@Case op of
"::" do 0 end
"." do 1 end
"+" do 3 end
"-" do 3 end
"*" do 4 end
"/" do 4 end
"=" do 5 end
"<>" do 5 end
"<" do 5 end
">" do 5 end
"<=" do 5 end
">=" do 5 end
"and" do 6 end
"andthen" do 6 end
"or" do 6 end
"orelse" do 6 end
"implies" do 7 end
":=" do 8 end
";" do 10 end
end
end
The operator is named fact, takes a single argument n and is defined in the global context Root which means that the name fact is available everywhere. The argument n is local to the body of fact. All constructs in XOCL return a value; the if-expression returns 1 or calls fact again to return a value:
context Root
@Operation fact(n)
if n = 0
then 1
else n * fact(n - 1)
end
end
Another example of a global operation definition is gcd below that computes the greatest common divisor for a pair of positive integers. The example shows that operations can optionally have argument and return types:
context Root
@Operation gcd(m:Integer,n:Integer):Integer
if m = n
then n
elseif m > n
then gcd(m-n,n)
else gcd(m,n-m)
end
end
Integers are represented in 24 bits in XMF. The operators 'and' and 'or' are overloaded to perform bit comparison when supplied with integers. The operators lsh and rsh are defined on integers. They take the number of bits to shift left and right respectively. The following operation adds up the number of bits in an integer:
context Root
@Operation addBits(n:Integer):Integer
if n = 0 or n < 0
then 0
else (n and 1) + (addBits(n.rsh(1)))
end
end
In addition, integers support the follosing operators: mod, abs, bit, max, min and byte. XOCL supports floating point numbers. All numeric operators described above are defined for floating point numbers. In general integers and floats can be mixed in expressions and the integer is translated to the equivalent float. You can construct a float using the constructor Float so that 3.14 is created by Float(3,14). Floats are translated to integers by the operations round (upwards) and floor (downwards).

Integer division is performed by the operation div and floating point division is performed by the infix operator / (translating integers to floats as necessary). The operators sqrt, sin and cos are defined for floats.

All values in XMF support the operation 'of' that returns the most specific class of the receiver. A value can be asked whether it is of a given class using the operator isKindOf. Classes can be compared using inheritsFrom where a class is considered to inherit from itself. We could define isKindOf as:
context Element
@Operation isKindOf(type:Classifier):Boolean
self.of().inheritsFrom(type)
end
The distinguished value null, of type Null, is special in that it returns true when asked whether it isKindOf any class. It is used as the default value for all non-basic classes in XMF.

XMF strings are of type String. The following operation wraps the string "The" and "." around a supplied string:
context Root
@Operation makeSentence(noun:String):String
"The " + noun + "."
end
Strings are sequences of characters indexed starting from 0. Equality of strings is defined by = on a character by character comparison. Characters are represented as integer ASCII codes. The following operation checks whether a string starts with an upper case char:
context Root
@Operation startsUpperCase(s:String):Boolean
if s->size > 0
then
let c = s->at(0)
in "A"->at(0) <= c and c <= "Z"->at(0)
end
else false
end
end
Strings can be compared using <, <=, > and >= in which case the usual lexicographic ordering applies.

Since strings are compared on a character by character basis this makes string comparison relatively inefficient when performing many comparisons. Strings are often used as the keys in lookup tables (for example as the names of named elements). In order to speed up comparison, XMF provides a specialization of String called Symbol. A symbol is the same as a string except that two symbols with the same sequence of characters have the same identity. Comparison of symbols by identity rather than character by character is much more efficient. A string s can be converted into a symbol by Symbol(s).

Any value can be converted into a string using the operation toString. To get the string representation of a number for example: 100.toString()).

To top.

Tables

A table is used to associate keys with values. A table has operations to add associations between keys and values and lookup a given key. A table is created using the Table constructor supplying a single argument that indicates the approximate number of elements to be stored in the table. Suppose that a library maintains records on borrowers:
context Root
@Class Library
@Attribute borrowers : Table = Table(100) end
end
A new borrower is added by supplying the id, name and address. When the new borrower is added we check that no borrower has been allocated the same id. If the id is not already in use then we register the new borrower by associating the id with a borrower record in the table:
context Library
@Operation newBorrower(id:String,name:String,address:String)
if not borrowers.hasKey(id)
then
let borrower = Borrower(id,name,address)
in borrowers.put(id,borrower)
end
else self.error("Borrower with id = " + id + " already exists.")
end
end
The library also provides an operation that gets a borrower record:
context Library
@Operation getBorrower(id:String):Borrower
if borrowers.hasKey(id)
then borrowers.get(id)
else self.error("No borrower with id = " + id)
end
end
Tables provide operations to get all the keys and all the values:
context Library
@Operation idsInUse():Set(String)
borrowers.keys()
end

context Library
@Operation allBorrowers():Set(Borrower)
borrowers.values()
end
To top.

Sets

A set is an unordered collection of elements. The elements of a set need not all be of the same type. When T is the type of each element of the set then the set is of type Set(T). Operations are provided to add and remove elements from sets and to combine sets. Sets can be used in iterate expressions.

Sets are created by evaluating a set expression of the form: Set{x,y,z,...} where x, y, z etc are element expressions. For example:
Set{1,true,Set{"a","b","c"},Borrower("1","Fred","3 The Cuttings")}
The expression Set{} produces the empty set. A set is unordered. An element can be selected at random from a non-empty set by performing S->sel. A set is empty when S->isEmpty produces true (or when it is = to Set{}). An element e is added to a set by S->including(e) and removed from a set by S->excluding(e). The union of two sets is produced by S1 + S2 and the difference is constructed by S1 - S2. An element is contained in a set when S->includes(e).

Suppose that the set operation {\tt includes} was not provided as part of XOCL. It could be defined by:
context Set(Element)
@Operation includes(e:Element):Boolean
if self->isEmpty
then false
else
let x = self->sel
in if x = e
then true
else self->excluding(x)->includes(e)
end
end
end
end
To top.

Sequences

A sequence is an ordered collection of elements. The elements in the sequence need not all be of the same type. When T is the type of each element in the sequence then the sequence is of type Seq(T). Sequences can be used in iterate expressions as described in section iterate.

Sequences are created by evaluating a sequence expression or by translating an existing element into a sequence. Sets, strings, integers and vectors can be translated to sequences of elements, characters, bits and elements respectively by performing e.asSeq().

The following operations are defined on sequences: + appends sequences; asSet transforms a sequence into a set; asString transforms a sequence of character codes into a string; asVector transforms a sequence into a vector; at takes an index and returns the element at that position in the sequence, it could be defined as:
context Seq(Element)
@Operation at(n:Integer):Element
if self->size = 0
then self.error("Seq(Element).at: empty sequence.")
else if n <= 0
then self->head
else self->tail.at(n - 1)
end
end
end
The operation butLast returns all elements in a sequence but the last element. It could have been defined as follows, note the use of Seq{head | tail} to construct a sequence with the given head and tail:
context Seq(Element)
@Operation butLast():Seq(Element)
if self->size = 0
then self.error("Seq(Element)::butLast: empty sequence.")
elseif self->size = 1
then Seq{}
else Seq{self->head | self->tail->butLast}
end
end
The operation contains returns true when a sequence contains a supplied element; drop takes an integer and returns a sequence that is the result of dropping the supplied number of elements; flatten maps a sequence of sequences to a sequence:
context Seq(Element)
@Operation flatten():Seq(Element)
if self->isEmpty
then self
else self->head + self->tail->flatten
end
end
The operation hasPrefix takes a sequence as an argument and returns true when the receiver has a prefix that is equal to the argument; including takes an element and returns a new sequence, this is the receiver if it contains to the argument or the argument prepended to the receiver; indexOf takes an element and returns the index of the argument in the receiver:
context SeqOfElement
@Operation indexOf(element:Element):Integer
if self = Seq{}
then -1
elseif self->head = element
then 0
else self->tail->indexOf(element) + 1
end
end
The operation insertAt takes an element and an index and inserts the element at the given index; last returns the last element in a sequence; hasSuffix takes a sequence as an argument and returns true when the receiver ends with the argument:
context Seq(Element)
@Operation hasSuffix(suffix):Boolean
self->reverse->hasPrefix(suffix->reverse)
end
The operation head returns the head of a non-empty sequence; includes returns true when the argument is included in the receiver; isEmpty returns true when the receiver is empty; isProperSequence returns true when the final element in the sequence is a pair whose tail is Seq{}; map applies an operation to each element of a sequence, the definition of map shows the varargs feature of XOCL operations where the last argument may be preceded by a '.' indicating that any further supplied arguments are bundled up into a sequence and supplied as a single value:
context Seq(Element)
@Operation map(message:String . args:Seq(Element)):Element
self->collect(x | x.send(message,args))
end
The operation max finds the maximum of a sequence of integers; prepend adds an element to the head of a sequence; qsort takes a binary predicate operation and sorts the receiver into an order that satisfies the predicate using the quicksort algorithm:
context Seq(Element)
@Operation qsort(pred):Seq(Element)
if self->isEmpty
then self
else
let e = self->head
in let pre = self->select(x | pred(x,e));
post = self->select(x | x <> e and not pred(x,e))
in pre->sort(pred) + Seq{e} + post->sort(pred)
end
end
end
end
The operation ref can be used to lookup a name-space path represented as a sequence of strings to the element found at the path. The operation takes a sequence of namespaces as an argument; the namespace arguments are used as the basis for the lookup, for example:
Seq{"Root","EMOF","Class","attributes"}->ref(Seq{Root})
returns the attribute named attributes. Note that namespace Root contains itself.

The operation reverse reverses the receiver:
context Seq(Element)
@Operation reverse():Seq(Element)
if self->isEmpty
then Seq{}
else self->tail->reverse + Seq{self->head}
end
end
The operation separateWith takes a string as an argument and returns the string that is formed by placing the argument between each element of the receiver after the element is transformed into a string using toString.

The operation subst takes three arguments: new, old and all; it returns the result of replacing element old with new in the receiver. If all is true then all elements are replaced otherwise just the first element is replaced.

The operation subSequence takes a staring and terminating indices and returns the appropriate subsequence; take takes an integer argument and returns the prefix of the receiver with that number of elements; tail returns the tail of a non-empty sequence.

Sequences have identity in XOCL; the head and tail of a sequence can be updated using:
S->head := e
and
S->tail := e
This makes sequences very flexible and can be used for efficient storage and update of large collections (otherwise each time a sequence was updated it would be necessary to copy the sequence).

To top.

A-Lists

An a-list is a sequence of pairs; each pair has a head that is a key and a tail that is the value associated with the key in the a-list. A-lists are used as simple lookup tables. They are much more lightweight than instances of the class Table and have the advantage that the large number of builtin sequence operations apply to a-lists. The following class shows how an a-list can be used to store the age of a collection of people:
context Root
@Class People
@Attribute table : Seq(Element) end
@Operation newPerson(name:String,age:Integer)
self.table := table->bind(name,age)
end
@Operation getAge(name:String):Integer
table->lookup(name)
end
@Operation hasPerson(name:String):Boolean
table->binds(name)
end
@Operation birthday(name:String)
// Assumes name is in table:
table->set(name,table->lookup(name) + 1)
end
end
To top.

Iteration Expressions

Iteration expressions in XOCL allow collections (sets and sequences) to be manipulated in a convenient way. Iteration expressions are a shorthand for higher-order operations that take an operation as an argument and apply the argument operation to each element of the collection in turn. As such, iteration expressions can be viewed as sugar for the invocation of the equivaent higher-order operations.

A collection can be filtered using a select expression:
S->select(x | e)
where x is a variable and e is a predicate expression. The result is the sub-collection of the receiver where each element y in the sub-collection satisfies the predicate when x is bound to y. This can be defined as follows for sequences:
context Seq(Element)
@Operation select(pred:Operation):Seq(Element)
if self->isEmpty
then self
elseif pred(self->head)
then Seq{self->head | self->tail.select(pred)}
else self->tail.select(pred)
end
end
The reject expression is like select except that it produces all elements that fail the predicate; here is the definition of reject for set:
context Set(Element)
@Operation reject(pred:Operation):Set(Element)
if self->isEmpty
then self
else
let x = self->sel
in if pred(x)
then self->excluding(x)->reject(pred)
else self->excluding(x)->reject(pred)->including(x)
end
end
end
end
The collect expression maps a unary operation over a collection:
S->collect(x | e)
It is defined for sequences as follows:
context Seq(Element)
@Operation collect(map:Operation):Seq(Element)
if not self->isEmpty
then
let x = self->sel
in self->excluding(x)->select(map)->including(map(x))
end
else self
end
end
The expression iterate has the form:
S->iterate(x y = v | e)
This expression steps through the elements of S and repeatedly sets the value of y to be the value of e where e may refer to x} and y. The initial value of y is the value v. The following shows an example that adds up the value of a sequence of integers:
Seq{1,2,3,4,5}->iterate(i sum = 0 | sum + i)
The definition of iterate as a higher order operation on sequences is as follows:
context Seq(Element)
@Operation iterate(y:Element,map:Operation):Element
if self->isEmpty
then y
else self->tail.iterate(map(self->head,y),map)
end
end
The complete collection of iterate expressions and their translation is given by the following table:

C->collect(e | M)
C->iterate(e c = o.of().default() | c->including(M))
C->exists(e | M)
C->iterate(e b = false | b or M)
C->forAll(e | M)
C->iterate(e b = true | b and M)
C->reject(e | M)
C->iterate(e c = e.of().default() | if M then c else c->including(e) end)
C->select(e | M)
C->iterate(e c = e.of().default() | if M then c->includng(e) else c end)

To top.

Variables and Scope

Variables in XMF are of three types: slots, dynamic and lexical. When a message is sent to an object, all of the slots defined by the object are bound to the slot values, For example:
context Root
@Class Point
@Attribute x : Integer end
@Attribute y : Integer end
@Constructor(x,y) ! end
@Operation getX():Integer
x
end
@Operation getY():Integer
y
end
end
The references to x and y in the accessor operations defined in Point are variables of type slot. The class definition given for Point is equivalent to the shorthand definition:
context Root
@Class Point
@Attribute x : Integer (?) end
@Attribute y : Integer (?) end
@Constructor(x,y) ! end
end
Slot variables can always be replaced with a qualified reference using self as in self.x and self.y. Using qualified references is a matter of taste: somtimes it is more readable to use a qualified reference. Note that it is not possible to update slots using variable syntax: x := 0; it is always necessary to update slots using a qualified update as follows self.x := 0.

Dynamic variables are typically values associated with names in name-spaces. Dynamic variables are established when the association between the variable name and the value is created and typically persist for the rest of the lifetime of the XMF session. Lexical variables are typically created when values are supplied as arguments to an operation or when local definitions are executed. The association between the lexical variable name and the value persist for the duration of the operation definition or the execution of the body of the local block. In both cases, as the name suggests, variable values can change by side-effect.

A dynamic variable added to the Root name-space has global scope because Root is imported everywhere. A new dynamic variable in a name-space N is created as follows:
N::v := e;
where v is the name of the variable and e is an expression that produces the initial value. In order to make the names in a name-space visible you need to import the name-space. Imports can take place locally using the form:
import N in e end
or globally}in a file, by placing an import N; at the head of the file.

To top.

Let Expressions

Lexical variables are established when arguments are passed to an operation or using a let expression. In both cases the variable can be referenced in the body of the expression, but not outside the body. In both cases the variables can be updated using v := e. Suppose we require an operation that takes two integers and returns a pair where the head is the smallest integer and the tail is the other integer:
context Root
@Operation orderedPair(x,y)
let min = 0;
max = 0
in if x < y then min := x else min := y end;
if x > y then max := x else max := y end;
Seq{min | max}
end
end
The definition of orderedPair shows how a let expression can introduce a number of variables (in this case min and max). If the let-bindings are separated using';' then the bindings are established in-parallel meaning that the variables cannot affect each other (i.e. the value for max cannot refer to min and vice versa). If the bindings are separated using then they are established in-series meaning that values in subsequent bindings can refer to variables in earlier bindings, for example:
context Root
@Operation orderedPair(x,y)
let min = if x < y then x else y end then
max = if min = x then y else x end
in Seq{min | max}
end
end
The bindings in let-expressions may optionally include a type designator for the variable. Unless dynamic type checking is active, the types do not play any part at run-time; however, they can make the code more readable:
context Root
@Operation orderedPair(x,y)
let min:Integer = if x < y then x else y end then
max:Integer = if min = x then y else x end
in Seq{min | max}
end
end
Operations can also be bound in let-expressions using a short-hand syntax. Defining local operations is an approach to reducing the complexity of an application by controlling the scope of the functionality. For example, to return the maximum of a collection of non-zero elements:
context Root
@Operation max(s:Seq(Integer)):Integer
let max2(x:Integer,y:Integer):Integer =
if x > y
then x
else y
end
in s->iterate(n max = 0 | max2(max,n))
end
end
Operations defined in the same let-expression cannot reference other operations unless the 'then' keyword is used to sequence the bindings. The @Letrec construct can be used to create mutually recursive operations. Often there is a requirement for a locally defined recursive operation. Suppose that we did not use the iterate-expression in the example given above. The same behaviour could be achieved as follows:
parserImport XOCL;

context Root
@Operation max(s:Seq(Integer)):Integer
@Letrec findMax(max:Integer,s:Seq(Integer)):Integer =
if s->isEmpty
then max
elseif s->head > max
then findMax(s->head,s->tail)
else findMax(max,s->tail)
end
in findMax(0,s)
end
end
To top.

Loops

XMF provides While and For for looping through collections and provides Find for selecting an element in a collection that satisfies a condition. A While loop performs an action until a condition is satisfied (not a named element may use a symbol for its name so we ensure the name is a string using the toString operation):
context Root
@Operation findElement(N:Set(NamedElement),name:String)
let found = null
in @While not N->isEmpty do
let n = N->sel
in if n.name().toString() = name
then found := n
else N := N->excluding(n)
end
end
end;
found
end
end
It is often the case that While loops are used to iterate through a collection. This pattern is captured by a For loop:
context Root
@Operation findElement(N:Set(NamedElement),name:String)
let found = null
in @For n in N do
if n.name().toString() = name
then found := n
end
end;
found
end
end
In general a For loop @For x in S do e end is equivalent to the following While loop:
let forColl = S;
isFirst = true
in @While not forColl->isEmpty do
let x = forColl->sel
in forColl := forColl->excluding(x);
let isLast = forColl->isEmpty
in e;
isFirst := false
end
end
end
end
where the variables forColl, isFirst and isLast are scoped over the body of the loop e. These can be useful if we want the body action to depend on whether this is the first or last iteration, for example turning a sequence into a string:
context Seq(Operation)
@Operation toString()
let s = "Seq{"
in @For e in self do
s := s + e.toString();
if not isLast then s := s + "," end
end;
s + "}"
end
end
A For loop may return a result. The keyword do states that the body of the For loop is an action and that the result of performing the entire loop will be ignored when the loop exits. Alternatively, the keyword produce states that the loop will return a sequence of values. The values are the results returned by the loop body each time it is performed. For example, suppose we want to calculate the sequence of names from a sequence of people:
context Root
@Operation getNames(people:Seq(Person)):Seq(String)
@For person in people produce
person.name
end
end
The keyword in is a For-loop directive. After in the loop expects one or more collections. The in directive supports multiple variables. This feature is useful when stepping through multiple collections in sync, as in:
context Root
@Operation createTable(names:Seq(String),addresses:Seq(String),telNos:Seq(String))
@For name,address,telNo in names,addresses,telNos produce
Seq{name,address,telNo}
end
end
A For-loop can be used to iterate through a table. Often we want to iterate either through the table values or the table keys. If we use the in directive to iterate through either of these then we will create an intermediate collection:
context Root
@Operation addToAll(n:Integer,t:Table)
@For k in table.keys() do
k.put(k,t.get(k) + n)
end
end
The expression table.keys() creates an intermediate collection of all the keys in the table. The collection is not returned and cannot be referenced independently within the body of the loop. Therefore the collection is transient. The allocation of transient table collections can be avoided using the For-loop directives inTableValues and inTableKeys:
context Root
@Operation addToAll(n:Integer,t:Table)
@For k inTableKeys table do
k.put(k,t.get(k) + n)
end
end
A @Find-expression is used to select the first element in a collection that matches a given predicate. Suppose we want to select an element with a given name:
@Find(element,elements)
when element.name() = name
end
A @Find-expression may have an optional do-part and an optional else-part. The do-part allows us to return some value other than the selected element and the else-part allows us to return a value when no element is found. For example:
@Find(element,elements)
when element.name() = name
do "Candidate: " + element.name()
else throw NoCandidateFound()
end
A @Count-expression is can be used to index through a collection. For example, suppose we have a vector and want to add 1 to each element:
@Count i from 0 to v->size do
v.put(i,v.get(i)+1)
end
To top.

Operations

XMF operations are used to implement both procedures and functions. An operation has an optional name, some parameters, a return type and a body. Operations are objects with internal state; part of the internal state is the name, parameter information, type and body. Operations also have property lists that can be used to attach information to the operation for use by XMF programs.

Operations can be created and stored in XMF data items. In particular, operations can be added to name spaces and then referenced via the name space (either where the name space is imported or directly by giving the path to the operation). We have seen many examples of adding operations to the name space called Root. The syntax:
context Root
@Operation add(x,y) x + y end
can occur at the top-level of an XMF source file, compiled and loaded. It is equivalent to the following expression:
Root.add(@Operation add(x,y) x + y end);
Unlike the context expression, the call to add may occur anywhere in XMF code. Operations are performed by sending them a message invoke with two arguments: the value of self (or target) to be used in the body of the operation and a sequence of argument values. The target of the invocation is important because it provides the value of self in the body of the operation and supplies the values of the slot-bound variables. The add operation can be invoked by:
add.invoke(null,Seq{1,2})
produces the value 3. Note that in this case there is no reference to self or slot-bound variables in the body and therefore the target of the invocation is null. A shorthand for invocation is provided:
add(1,2)
however, note that no target can be supplied with the shorthand. In this case the target will default to the value of self that was in scope when the operation was created.

Lexically bound variables that are scoped over an operation are available within the body of the operation event though the operation is returned from the lexical context. This is often referred to as closing the lexical variable into the operation (or closure). This feature is very useful when generating behaviour that differs only in terms of context. Suppose that transition machine states have an action that is implemented as an operation and that the action is to be performed when the state is entered:
context StateMachines
@Class State
@Attribute name : String end
@Attribute action : Operation end
@Constructor(name,action) end
@Operation enter()
action()
end
end
Operations take 0 or more positional arguments and may optionally have a final argument that can be used to bundle any extra arguments that are supplied up into a sequence. If it is used then the final argument should occur after a '.' and is a way of defining an operation with a minimum, but variable, arity. For example, suppose we want to define an operation that behaves like format except that the format-arguments are supplied as multiple arguments rather than in a sequence. For example:
myFormat(stdout,"Arg 1 = ~S, arg 2 = ~S~%",x,y)
This can be defined as follows:
context Root
@Operation myFormat(out:OutputChannel,control:String . args)
format(out,control,args)
end
Operations have mutable properties. These can be specified in the definition of the operation after the name and before the argument list:
context Root
@Operation o[callCount=0]()
o.setProperty("callCount",o.property("callCount") + 1);
// body of operation o...
end
Now we can request the value of the callCount property of o at any time to see how many times it has been called. Multiple properties can be defined separated with ','. Properties allow operations to be treated as objects with state. The following shows how operations with properties can be used to represent both classes and objects:
context Root
@Operation mkPoint(x,y)
@Letrec newPoint =
@Operation[x=x,y=y](message . args)
@Case message of
"getX" do
newPoint.property("x")
end
"setX" do
newPoint.setProperty("x",args->head)
end
"getY" do
newPoint.property("y")
end
"setY" do
newPoint.setProperty("y",args->head)
end
end
end
in newPoint
end
end
The operation mkPoint acts as a class and generates a new point when it is supplied with initial values for x and y. The operation that is returned acts as an instance of the class and handles messages that are sent to the instance as the first argument.

To top.

Exception Handling

When an error occurs in XOCL, the source of the error throws an exception. The exception is a value that, in general, contains a description of the problem and any data that might help explain the reason why the problem occurred.

An exception is thrown to the most recently established handler; intermediate code is discarded. If no handler exists then the XOCL VM will terminate. In most cases, the exception is caught by a user defined handler or, for example in the case of the XMF console, a handler established by the top level command interpreter.

When an exception is caught, the handler can inspect the contents of the exception and decide what to do. For example it may be necessary to re-throw the exception to the next-most recently established handler, since it cannot be dealt with. On the other hand, it is usual to catch the exception, print a message, patch up the problem, or just give up on the requested action.

For example, suppose that you have an application that reads data from a file. If the file does not exist then an exception is raised. This can be done as follows:
@Operation readData(file:String)
if file.fileExists()
then
// Read the data...
else self.error("The file does not exist.")
end
end
In the example given above, the operation 'error' is used to raise the exception. The operation Exception::error(message:String) is defined for all data elements and just creates a general type of exception and throws it. The class XCore::Exception contains a message. The above example is equivalent to:
@Operation readData(file:String)
if file.fileExists()
then
// Read the data...
else throw Exception("The file does not exist.")
end
end
The throw expression takes a single data element and throws it. The thrown data element should be an instance of Exception or a sub-class of Exception. The thrown exception can be caught in a try-expression:
try
readData(someFile)
catch(x:Exception)
// Do something with x...
end
 The class Exception has various sub-classes that can be used to capture specific information about the exception when it occurs. For example, the class Exceptions::FileNotFound can be used to create an exception when a file is not present:
@Operation readData(file:String)
if file.fileExists()
then
// Read the data...
else throw FileNotFound(File)
end
end
Then specific types of exception can be caught and dealt with:
try
readData(someFile)
catch(x:Exception)
@TypeCase(x)
FileNotFound do
// OK use a default data file...
readData(defaultFile)
end
else
// We cannot handle the exception so
// re-throw it to a less-specific handler...
throw x
end
end
The package Exceptions defines a collection of exception types that are used by the XMF system. You should use these exceptions and extend them with new types as appropriate:

ArgTypeError
Type checking is on and an operation argument does not match the declared type.
ArityError
Incorrect number of arguments are supplied to an operation.
AttributeTypeException
The type of an attribute cannot be found when it is defined.
CaseFailed
No case arm matched the value(s).
ClassInheritanceException
One of the named parent classes did not exist when a class was defined.
Error
A general error.
Exception
A general exception.
IndexOutOfBounds
Illegal index for a collection.
LocalTypeError
Type checking is on and a let-bound variable value does not match the declared type.
MapFailed
A mapping (like a case-expression) contains no matching clause for the supplied values.
NameSpaceRef
A name-space reference (e.g. P::Q) could not be resolved.
NoKeyInTable
A reference to a non-existent key in a table.
NoOperation.
A message is sent but no matching operation is found.
NoSlot
A slot reference is performed on an object, but not slot is defined.
ResultTypeError
Type checking is on and the return value of an operation call does not match the declared type.
StringConversionError
Converting a string to a type was not possible.
TypeError
An operation was attempted but the element was not of the expected type.
UnboundVar
The variable is not bound.

To top.

Simple Dispatching

The type of an element is checked using the @TypeCase construct:
@TypeCase(x)
String do
// Do something with a string...
end
Integer do
// Do something with an integer...
end
P::Q::X do
// Do something with an X...
end
else
// x was none of the above...
end
A @Case ... end expression uses pattern matching to dispatch on an object. A more light-weight construct for dispatching on objects is @CaseObj ... end which is much more efficient than @Case. Consider the following package:
@Package Trees
@Class Tree
end
@Class Branch extends Tree
@Attribute left : Tree end
@Attribute right : Tree end
end
@Class Leaf extends Tree
@Attribute data : Element end
end
end
An operation to flatten a tree to a sequence of data can be defined as follows:
import Trees;

context Root
@Operation flatten(t:Tree)
@CaseObj(tree)
Branch[left,right] do
flatten(left) + flatten(right)
end
Leaf[data] do
Seq{data}
end
end
end
The same effect can be achieved using pattern matching in a case-expression, however the caseobj-expression is much more efficient because:
Integer dispatch can be achieved using case-expressions or, more efficiently, using caseint-expressions:
@CaseInt[256] c of
0 do
// handle the 0-case...
end
1 to 100 do
// Handle the range 1 to 100...
end
101 to 200, 234 do
// Handle the range 101 to 100 and the
// value 234 ...
end
else
// None of the above matched...
end
The caseint-expression must contain a literal constant that defines the upper limit of the non-negative integer value c at run-time. The values (or range lower and upper limits) used in the caseint-clauses, can be general XOCL expression providing that they can be evaluated at compile-time (in the example they are all constants so this condition holds). Caseint-expressions are provide very efficient dspatch on integer values because they are compiled to an indexed jump performed by the VM.

To top.

Patterns

A pattern is matched against a value. The pattern match may succeed or fail in a given matching context. A matching context keeps track of any variable bindings generated by the match and maintains choice points for backtracking if the current match fails.

Pattern matching can be viewed as being performed by a pattern matching engine that maintains the current pattern matching context as its state. The engine state consists of a stack of patterns to be matched against a stack of values, a collection of variable bindings and a stack of choice points. A choice point is a machine state. At any given time there is a pattern at the head of the pattern stack and a value at the head of the value stack. The machine executes by performing state transitions driven by the head of the pattern stack: if the outer structure of the pattern matches that of the value at the head of the value stack then:
If the machine fails to match the pattern and value at the head of the respective stacks then the most recently created choice point is popped and becomes the new machine state. Execution continues until either the pattern stack is exhausted or the machine fails when the choice stack is empty.

A variable pattern consists of a name, optionally another pattern and optionally a type. The simplest form of variable pattern is just a name, for example, the formal parameter x is a variable pattern:
let add1 = @Operation(x) x + 1 end in ...
Matching a simple variable pattern such as that shown above always succeeds and causes the name to be bound to the corresponding value. A variable may be qualified with a type declaration:
let add1 = @Operation(x:Integer) x + 1 end in ...
which has no effect on pattern matching. A variable may be qualified with a pattern as in x = <Pattern> where the pattern must occur before any type declaration. Such a qualified variable matches a value when the pattern also matches the value. Any variables in the pattern and x are bound in the process.

A constant pattern is either a string, an integer, a boolean or an expression (in the case of an expression the pattern consists of [ followed by an expression followed by ]). A constant pattern matches a value when the values is equal to the constant (in the case of an expression the matching process evaluates the expression each time the match occurs). For example:
let fourArgs = @Operation(1,true,"three",x = [2 + 2]) x end in ...
is an operation that succeeds in the case:
fourArgs(1,true,"three",4)
and returns 4. A sequence pattern consists of either a pair of patterns or a sequence of patterns. In the case of a pair:
let head = @Operation(Seq{head | tail}) head end in ...
the pattern matches a non-empty sequence whose head must match the head pattern and whose tail must match the tail pattern. In the case of a sequence of patterns:
let add3 = @Operation(Seq{x,y,z}) x + y + z end in ...
the pattern matches a sequence of exactly the same size where each element matches the corresponding pattern.

A constructor pattern matches an object. A constructor pattern may be either a by-order-of-arguments constructor pattern (or BOA-constructor pattern) or a keyword constructor pattern. A BOA-constructor pattern is linked with the constructors of a class. It has the form:
let flatten = @Operation(C(x,y,z)) Seq{x,y,z} end in ...
where the class C must define a 3-argument constructor. A BOA-constructor pattern matches an object when the object is an instance of the class (here C but in general defined using a path) and when the object's slot values identified by the constructor of the class with the appropriate arity match the corresponding sub-patterns (here x, y and z).

A keyword constructor pattern has the form:
let flatten =
@Operation(C[name=y,age=x,address=y])
Seq{x,y,z}
end
in ...
where the names of the slots are explicitly defined in any order (and may be repeated). Such a pattern matches an object when it is an instance of the given class and when the values of the named slots match the appropriate sub-patterns.

A conditional pattern consists of a pattern and a predicate expression. It matches a value when the value matches the sub-pattern and when the expression evaluates to true in the resulting variable context. For example:
let repeat = @Operation(Seq{x,y} when x = y) Seq{x} end in ...
Note that the above example will fail (and probably throw an error depending on the context) if it is supplied with a pair whose values are different.

Set patterns consist of an element pattern and a residual pattern. A set matches a pattern when an element can be chosen that matches the element pattern and where the rest of the set matches the residual pattern. For example:
let choose = @Operation(S->including(x)) x end in ...
which matches any non-empty set and selects a value from it at random. Set patterns introduce choice into the current context because often there is more than one way to choose a value from the set that matches the element pattern. For example:
let chooseBigger =
@Operation(S->including(x),y where x > y)
x
end
in ...
Pattern matching in chooseBigger, for example:
chooseBigger(Set{1,2,3},2)
starts by selecting an element and binding it to x and binding S to the rest. In this case suppose that x = 1 and S = Set{2,3}. The pattern y matches and binds 2 and then the condition is applied. At this point, in general, there may be choices left in the context due to there being more than one element in the set supplied as the first parameter. If the condition x > y fails then the matching process jumps to the most recent choice point (which in this cases causes the next element in the set to be chosen and bound to x). Suppose that 3 is chosen this time; the condition is satisfied and the call returns 3.

The following is an example that sorts a set of integers into descending order:
context Root
@Operation sort(S)
@Case S of
Set{} do
Seq{}
end
S->including(x) when S->forAll(y | y <= x) do
Seq{x | Q} where Q = sort(S)
end
end
end
Sequence patterns use the infix + operator to combine two patterns that match against two sub-sequences. For example the following operation removes a sequence of 0's occurring in a sequence:
context Root
@Operation remove0s(x)
@Case x of
(S1 when S1->forAll(x | x <> 0)) +
(S2 when S2->forAll(x | x = 0)) +
(S3 when S3->forAll(x | x <> 0)) do
S1 + S3
end
end
end
Patterns may be used in the following contexts:
To top.

Working With Syntax

Evaluation

An element is performable if it can be requested to do two tasks: compile itself to a sequence of machine instructions and evaluate itself to produce an element. In many ways these two tasks are similar since compilation is translation from an element in one language to an element in another; the instructions in the machine language can each be asked to evaluate themselves. In order to design and develop language constructs it is important to understand how to process syntax; this section describes how XMF represents syntax and the various ways of transforming and evaluating syntax.

Figure  is an overview of the key syntax processes. Processing starts with concrete syntax which is represented as a sequence of characters. The characters may originate from a variety of sources including files, strings or typed at a keyboard. A parser is a processing engine that transforms a sequence of characters into data elements; the data elements are referred to as abstract syntax.

Once syntax is represented in data, it can be processed in many different ways. It can be transformed from one representation to another. It can be analysed to see if it contains any errors. It can be executed directly. The figure shows two different ways of evaluating syntax: interpretation and compilation.

An interpreter is a program that takes another program as input and runs it. An interpreter typically requires extra input to describe the context of evaluation (for example the values for gobal variables in the program). An interpreter is a program that itself must be written in a language. The XOCL interpreter is written in XOCL and is easy to extend.

A compiler is a program that translates a supplied program from a source language to a target language. Typically the target language has an interpreter which is somehow better than any interpreter for the source language. For example the source language may not have an interpreter or the target interpreter is much faster than any source interpreter. In this case the XOCL compiler translates XOCL source into XMF VM instructions for which there is an interpreter written in Java. The XOCL compiler is written in XOCL and is easy to extend.

Every element that is to be used as syntax must implement the Performable interface. Performable, requires that a syntax element knows how to evaluate itself and how to compile itself. The interface is defined as follows:
Performable::compile(env,frame,isLast,saveSource)
// Produces a sequence of machine instructions.
// The env binds variable names that are currently
// in scope to type descriptors. The frame is an
// integer describing how many enclosing operations
// there are. isLast is true when there is nothing
// further to perform. saveSurce is true when operations
// are to make theor source code available at run-time.
Performable::eval(target,env,imports)
// Evauates the element to produce a value. The target
// is the value of 'self' during evaluation. The
// environment associates variable names with values.
// The imports are a sequence of imported name spaces.
Performable::FV()
// Returns a set of the free variables in the
// receiver.
Performable::maxLocals()
// Returns the maximum number of loal variables that
// is required in order to evaluate the receiver.
Performable::pprint(out,indent)
// Writes a textual version of the syntax to the
// output channel using indent as the current level
// of indentation after newlines.
Any new syntax should implement the Performable interface. Fortunately, it is unusual to have to define all of this interface in practice because sub-classes of Performable such as XOCL::Sugar shield the user from the details. However, the following implementation of XOCL::While shows how to implement a complete interface.

The instructions produced by compiling a while-loop involve skip-instructions. The class While is a sub-class of Performable with performable attributes for the while-test and the while-body:
context While
@Operation compile(env,frame,isLast,saveSource)
let testCode = test.compile(env,frame,false,saveSource);
bodyCode = body.compile(env,frame,false,saveSource);
testLabel = Compiler::newLabel();
endLabel = Compiler::newLabel() then
returnValue = Compiler::labelInstrs(Seq{PushTrue()},endLabel)
in Compiler::labelInstrs(testCode,testLabel) +
Seq{SkipFalse(endLabel)} +
bodyCode +
Seq{Pop()} +
Seq{SkipBack(testLabel)} +
returnValue
end
end
Given the above definition of compile for while-loops, XMF is able to compile any file that contains a while-loop as part of the source code. When the source file is compiled, the text is parsed and each occurrence of concrete syntax for a while-loop is synthesized into an instance of the class XOCL::While. The resulting syntax for the complete file is then compiled. As part of the compilation, the while-loop will perform the operation defined above and return the sequence of instructions. The complete sequence of instructions for the whole file is then written out as a binary file. The binary file is read in at a later stage and the instructions are evaluated (either directly when the file is read in or via the call of an operation defined in the file).

Not all occurrences of a while-loop need to be compiled before they can be performed. Expressions typed at the top-level of XMF are not compiled, they are parsed to produce syntax objects and then evaluated. It is also possible to evaluate the source code in a file directlry without having to compile it. The definition of eval for a while-loop is given below:
context While
@Operation eval(target,env,imports)
@While test.eval(target,env,imports) do
body.eval(target,env,imports)
end
end
Although this definition seems at first to be self-referential (while defined in terms of while), it is important to state that it is a compiled operation and therefore the use of while in the body of the operation is compiled using the definition of compile given above. The key feature to note about the definition of eval is that the test and body of the while-loop are evaluated using their own definitions for eval.

A free variable is one that is used by a perfomable element, but which is not locally defined by that element. In order to support compilation, each performable elment must define FV. Since a while-loop does not make direct reference to variables, the free variables are the union of those for the test and body:
context While
@Operation FV():Set(String)
test.FV() + body.FV()
end
The opposite of free variables are bound variables. Again, in order to support compilation it is necessary for the compiler towork out how much local storage a performable element requires. Local variables are introduced (for example) by a let-expression. A while-loop does not directly introduce any local variables, but the test and body might:
context While
@Operation maxLocals():Integer
test.maxLocals().max(body.maxLocals())
end
Finally, if the compiler is instructed to assoiate the surce code with each compiled operation, each element in the body of an operation must be able to translate itself into a textual representation. This is implemented for While as follows:
context While
@Operation pprint(out,indent)
format(out,"@While ");
test.pprint(out,indent);
format(out," do~%~V",Seq{indent + 2});
body.pprint(out,indent + 2);
format(out,"~%~Vend",Seq{indent})
end
While is a fairly simple example of a performable element. Here is the complete implementation of a let-expression to give a :
context Let
@Operation compile(env,frame,isLast,saveSource)
let valueCode = bindings->reverse->collect(b |
b.value.compile(env,frame,false,saveSource))->flatten;
letEnv = env.allocateLocals(bindings.name),env.maxLocal())
in valueCode +
// Generate SETLOC instructions...
letEnv.setLocalsCode(bindings.name) +
body.compile(letEnv,frame,isLast,saveSource)
end
end
context Let
@Operation eval(target,env,imports)
let newEnv = bindings->iterate(b e = env |
e.bind(b.name,b.value.eval(target,env,imports)))
in body.eval(target,newEnv,imports)
end
end
context Let
@Operation FV():Set(String)
bindings->iterate(binding FV = body.FV() - bindings.name->asSet |
FV + binding.value.FV())
end
context Let
@Operation maxLocals():Element
let valueMaxLocals = bindings->collect(b |
b.value.maxLocals())->max;
bindingMaxLocals = bindings->size;
bodyMaxLocals = body.maxLocals()
in valueMaxLocals.max(bindingMaxLocals + bodyMaxLocals)
end
end
context Let
@Operation pprint(out,indent)
format(out,"let ");
if bindings.isKindOf(Seq(Element))
then
@For b in bindings do
b.pprint(out,indent + 4);
if not isLast
then format(out,";~%~V",Seq{indent + 4})
else format(out,"~%~V",Seq{indent})
end
end
else bindings.pprint(out)
end;
format(out,"in ");
body.pprint(out,indent + 3);
format(out,"~%~Vend",Seq{indent})
end
Defining new syntax classes in XMF requires two things to be associated with the class: it must be a sub-class of Performable and therefore implment the Performable interface as described in this section; it must have a concrete syntax. Concrete syntaxes are defined in terms of a grammar that synthesizes an instance of the syntax class. Concrete syntaxes and grammars are the subject of the next chapter.

The class defining the Object Command Language are defined in section .

Fortunately, it is not usually necessary to define the complete Performable interface for each new syntax class. This is because a new syntax class can be defined in terms of a translation to existing syntax classes that already implement the interface. This process is called desugaring and is covered in section . Desugaring involves trnslating from one abstract syntax to another. A useful technology to do this is quasi-quotes and this is the subject of the next section.
To top.

Quasi-Quotes and Lifting

Suppose that we have a requirement for a new syntax for an until-loop. An until-loop has the usual semantics and the syntax class has a body and a test, both of which are performable. The syntax class Until can fully implement the Performable interface, however, there is sufficient syntax constructs in XOCL to support until-loops in terms of while-loops. A traslation can be defined as follows:
context Until
@Operation translateToWhile(body,test)
Order(body,While(test,body))
end
The translateToWhile operation simply constructs instances of the classes Order and While, supplying the appropriate body and test. With larger syntax translations it becomes difficult to work with target elements when they are directly constructed as instances of the syntax classes. The reason is that we are used to seeing syntax in concrete terms, not as instances of abstract classes. Worse still, there are actually two uses of syntax in the body of translateToWhile:

1. The concrete syntax of object construction.

2. The abstract syntax of a command followed by a while-loop.

When examples get a little larger than the one above, these issues become very confusing. XMF provides technology to address this issue: quasi-quotes. Quasi-quotes provide a means to construct syntax templates. The body of transateToWhile can be viewed as a syntax template: the fixed parts of the template are the ordering and the while-loop; the variable parts are the supplied body and test. Quasi-quotes allow the variable parts to be dropped into the fixed parts which are expressed using concrete syntax. Here is the same operation using quasi-quotes:
context Until
@Operation translateToWhile(body,test)
[| <body>;
@While <test> do
<body>
end
|]
end
The quotes are [| and |] surrounding concrete syntax. Within the concrete syntax, code can be dropped in by surrounding the expressions producing the code using < and >. In this case the expressions producing the code are variables: body and test, but in principle the expressions inside < and > can be anything that returns a performable element.

A typical pattern that occurs when working with syntax involves a sequence of performable elements. Consider translating a sequence of elements to produce a single expression that performs each expression in order:
@Operation orderCommands(commands:Seq(Performable))
commands->iterate(command ordered = [| null |] |
[| <ordered>; <command> |])
end
Translating syntax often involves the introduction and subsequent reference of local variables. Introduction of local variables is typically done via let-expressions and via operation arguments. This is easily done using quasi-quotes, so long as you remember that variable names are strings in let-bindings and operation arguments but variable references are always done using the syntax class OCL::Var. Consider translating a variable name, a classifir expession and a body expression into an operation that checks the type of a supplied value, something like:
@GuardedOp name(arg:type)
body
end
is just like a normal operation except that the type of the value supplied as arg is dynamically checked. The following translation produces a normal operation and inserts the check:
@Operation guardedOp(name:String,
arg:String,
type:Performable,
body:Performable)
[| @Operation <name>(<arg>)
if <Var(arg)>.isKindOf(<type>)
then <body>
else <Var(arg)>.error("Not of type " + <type>.toString())
end
end
|]
end
Suppose that each a syntax construct allows the slots of an object to be implicitly bound to variables, equivalent to a with-statement in Pascal. Each variable is introduced using a let-expression:
@Operation translateWith(object:Performable,
class:Class,
body:Performable)
class.allAttributes()->iterate(a exp = body |
let name = a.name().toString()
in [| <name> = <object>.<name> in <exp> end |]
end
)
end
A problem with the translateWith translation is that the object expression is performed many times. It is usual to introduce a local variable for the value so that it is performed once. Also, suppose that the with-translation is to be extended to put the valuesof the let-bound variables back into the object at the end of the body:
@Operation translateWith(object:Performable,
class:Class,
body:Performable)
let A = class.allAttributes() then
updateSlots = A->iterate(a exp = [| withResult |] |
let name = a.name().toString()
in [| withObject.<name> := <Var(name)>; <exp> |]
end
) then
completeBody = [| let withResult = <body>
in <updateSlots>
end |]
in [| let withObject = <object>
in <A->iterate(a exp = completeBody |
let name = a.name().toString()
in [| let <name> = withObject.<name>
in <exp>
end |]
end
)>
end
|]
end
end
Support that Point is a class with slots for the x and y position in a diagram. A node is to be moved by dx and dy and will return the new position as a pair:
 translateWith(
[| node.position |],
Point,
[| x := x + 1; y := y + 1; Seq{x,y} |])
The resulting performable element is pprinted as follows:
let withObject = node.position
in let x = node.position.x
in let y = node.position.y
in let withResult = x := x + 1;
y := y + 1;
Seq{x,y}
in withObject.x := x;
withObject.y := y;
withResult
end
end
end
end

To top.

The XOCL Grammar

@Grammar

AddPattern ::=

// An add pattern may use the infix + operator to specify
// that the pattern matches a collection split into two...

p1 = AtomicPattern

( '+' p2 = AddPattern { Addp(p1,p2) }

| { p1 }

).

AName ::=

// Often it is desirable to allow a name to be
// specified as a dropped string, as in <s>....

Name! | Drop.

Apply ::=

// An application may be a simple atomic expression
// followed by some arguments and then optionally
// followed by an arrow ->...

a = Atom e = ApplyTail^(a) Arrow^(e).

ApplyTail(a) ::=

args = Args! { Apply(a,args) }

| args = KeyArgs! { Instantiate(a,args) }

| { a }.

Arrow(a) ::=

'->' ! ArrowTail^(a)

| { a }.

Args ::= '(' ArgsTail.

ArgsTail ::=

')' { Seq{} }

| arg = Expr args = (',' Expr)* ')' { Seq{arg | args} }.

ArrowTail(c) ::=

n = Name x = CollOp^(c,n) Arrow^(x).

Atom ::=

// An atomic expression is self contained an involves no
// infix operators. Notice the use of ! to force the parse
// to be deterministic in case any of the different types
// of atomic expression start with the same terminals...

VarExp!
| Self!
| StrExp!
| IntExp!
| IfExp!
| BoolExp!
| LetExp!
| CollExp!
| Parentheses
| Drop
| Lift
| Throw
| Try
| ImportIn
| FloatExp
| LocalParserImport
| AtExp.

AtExp ::=

// An at-expression causes the parser to dispatch to
// another grammar for the scope of the @ ... end. The
// Terminal '@' is used in XOCL to introduce an at-expression,
// however this is not necessary - you could use any
// terminal to introduce an at-expression...

l = LinePos '@' e = @ { e.setLine(l) }.

AtomicPattern ::=

// An atomic pattern is one that is delimited and is
// not followed by a pattern infix operator...

Varp
| Constp
| Objectp
| Consp
| Keywordp
| Syntaxp
| '(' Pattern ')'.

Binding ::=

// A binding is a name followed by a value expression...

name = AName BindingTail^(name).

BindingTail(name) ::=

// A binding may be a value binding or may introduce
// an operation...

BindFun^(name)
| BindValue^(name).

BindFun(name) ::=

args = BindFunArgs type = OptType '=' value = SimpleExp { FunBinding(name,args,type,value) }.

BindFunArgs ::=

'(' BindFunArgsTail.

BindFunArgsTail ::=

p = Pattern ps = (',' Pattern)* ')' { Seq{p | ps} }

| ')' { Seq{} }.

BindValue(name) ::=

// A value binding is a name, optionally a type designator and
// the value...

type = OptType '=' value = SimpleExp { ValueBinding(name,type,value) }.

BindingList ::=

// Bindings in parallel are separated by ';' (note that sequential
// bindings are sneakily processed in the parser by flattening
// let-expressions)...

binding = Binding bindings = (';' Binding)* { Seq{ binding | bindings } }.

Bindings ::=

// You can drop a complete binding list into a
// let-expression...

BindingList
| Drop.

BinOp ::=

// Binary operators are parsed with equal precedence. The
// operator associativity rules and precedence rules are
// organised by an abstract syntax tree transformation that
// occurs post parsing (called from the parser) using a
// syntax walker...

'<' { "<" }
| '<=' { "<=" }
| '>' { ">" }
| '>=' { ">=" }
| '<>' { "<>" }
| '=' { "=" }
| '::' { "::" }
| ':=' { ":=" }
| '.' { "." }
| 'and' { "and" }
| 'andthen' { "andthen" }
| 'implies' { "implies" }
| 'or' { "or" }
| 'orelse' { "orelse" }
| '+' { "+" }
| '-' { "-" }
| '*' { "*" }
| '/' { "/" }.

BoolExp ::=

l = LinePos 'true' { BoolExp(l,true) }
| l = LinePos 'false' { BoolExp(l,false) }.

Boolp ::=

'true' { Constp(BoolExp(true)) }
| 'false' { Constp(BoolExp(false)) }.

CollExp ::=

SetExp!
| SeqExp!.

CollOp(c,n) ::=

// Handling the different types of syntax construct
// that can occur after a ->...

CollMessage^(c,n)
| Collect^(c,n)
| Iterate^(c,n)
| { CollExp(c,n,Seq{}) }.

CollMessage(c,n) ::=

'(' as = CommaSepExps ')' { CollExp(c,n,as) }.

Collect(c,n) ::=

'(' v = AName '|' e = Expr ')' { IterExp(c,n,v,e) }.

CommaSepExps ::=

e = Expr es = (',' Expr)* { Seq{e | es} }
| { Seq{} }.

CompilationUnit ::=

// A compilation unit is essentially a file full of
// definitions with parser imports and name-space
// imports at the head of the file...

// Parser imports affect the current parse...

ParserImport*

// Name-space imports affect the dynamic variables
// referenced in the rest of the compilation unit...

imports = Import*

// A sequence of definitions ot expressions...

exps = CompilationBody*

// The end of the input...

EOF

s = pState

{ CompilationUnit("",imports,exps,s.getSource()) }.

CompilationBody ::=

// An element in a compilation unit...

Def
| TopLevelExp.

Consp ::=

// A sequence pattern...

Pairp
| Seqp
| Emptyp.

Constp ::=

// A constant pattern...

Intp
| Strp
| Boolp
| Expp.

Def ::=

// A definition is introduced into a compilation
// unit using the keyword 'context'. Essentially this
// just adds a value to the container designated by
// the path. The initialization of the value is suppressed
// using the optional ! modifier...

'context'

// If ! is supplied then the expression
// may contain forward references and therefore
// the value is not initialized. The value should
// be initialized by other means (for example
// explicitly) at some later point...

isForward = ('!' { true } | { false })

// The path designates a container...

path = ImportPath

// The value of the expression is added to
// the container...

exp = Exp { ContextDef(path,exp,isForward) }.

Drop ::=

// A dropped value lives in < and > and a
// dropped pattern lives in <| and |>. Note
// that the call of resolve and order are
// used to transform an expression with respect
// to operator associativity and precedence...

'<' e = DropExp '>' { Drop(resolve(order(e))) }
| '<|' p = Pattern '|>' { DropPattern(p) }.

DropExp ::=

// We need to be careful inside dropped expressions
// because > is used as a terminator and not an
// operator...

'not' e = DropExp { Negate(e) }
| a = Apply DropExpTail^(a).

DropExpTail(a) ::=

o = DropOp! e = DropExp { BinExp(a,o,e) }
| { a }.

DropOp ::=

// Omit the > since this is a terminator
// for a dropped expresssion...

'<' { "<" }
| '<=' { "<=" }
| '<>' { "<>" }
| '=' { "=" }
| '::' { "::" }
| ':=' { ":=" }
| '.' { "." }
| 'and' { "and" }
| 'andthen' { "andthen" }
| 'implies' { "implies" }
| 'or' { "or" }
| 'orelse' { "orelse" }
| '+' { "+" }
| '-' { "-" }
| '*' { "*" }
| '/' { "/" }.

EImport ::=

'import' exp = TopLevelExp { Evaluator::Import(exp) }.

Emptyp ::=

// Essentially a constant pattern...

'Seq{' '}' { Constp(SetExp("Seq",Seq{})) }
| 'Set{' '}' { Constp(SetExp("Set",Seq{})) }.

EmptySeqTail(l) ::=

'}' { SetExp(l,"Seq",Seq{}) }.

EvaluationUnit ::=

// An evaluation unit is similar to a compilation
// unit but is used to construct a component that
// can evaluated (instead of compiled)...

ParserImport*

imports = EImport*

exps = (Def | TopLevelExp)*

EOF

{ Evaluator::EvaluationUnit(imports,exps) }.

Exp ::=

// The usual entry point when parsing a single
// expression. Note that the resolve and order
// operators are used to transform the abstract
// syntax tree in order to implement the rules
// of operator associativity and precedence. Note
// also that resolve and order *must* be called
// somewhere, therefore if you use a different
// clause as your entry point then you may need
// to call these explicitly yourself...

e = Expr! { resolve(order(e)) }.

Expr ::=

// Expr is used throughout the grammar as the clause
// that produces a general expression. The difference
// between Exp and Expr is that the order and resolve
// operations are *not* called by Expr since these
// need only be called once for the root expression...

'not' e = Expr { Negate(e) }

| '-' e = SimpleExp { BinExp(IntExp(0),"-",e) }

| a = Apply ExpTail^(a).

ExpTail(a) ::=

o = Op! e = Expr { BinExp(a,o,e) }
| { a }.

Exp1 ::=

// Use Exp1 if you require all of the input to be
// consumed by the parser...

Exp EOF.

Expp ::=

// A pattern that evaluates a component expression
// and then compares the result with the supplied
// value...

'[' exp = Exp ']'

{ Constp(exp) }.

FloatExp ::=

l = LinePos f = Float

{ f.lift().line := l }.

IfExp ::=

// An if-expression starts with 'if' and
// 'then'. After these have been consumed
// there are a number of alternative forms...

l = LinePos

'if' e1 = Expr

'then' e2 = Expr

e3 = IfTail

{ If(l,e1,e2,e3) }.

IfTail ::=

// An if-expression may have an optional 'else'
// and may nest using 'elseif'...

'else' Expr 'end'

| l = LinePos 'elseif' e1 = Expr 'then' e2 = Expr e3 = IfTail { If(l,e1,e2,e3) }

| 'end' { BoolExp(false) }.

Import ::=

'import' path = ImportPath ';' { Import(path) }.

ImportPath ::=

n = Name ns = ('::' Name)* { Seq{n | ns} }.

ImportIn ::=

'import' path = ImportPath 'in' body = Exp 'end' { ImportIn(path,body) }.

IntExp ::=

l = LinePos e = Int { IntExp(l,e) }.

Intp ::=

i = Int { Constp(IntExp(i)) }.

Iterate(c,n) ::=

'(' v1 = AName v2 = AName '=' init = Expr '|' body = Expr ')'

{ Iterate(c,v1,v2,init,body) }.

KeyArgs ::=

// Keyword arguments occur in keyword instantiation
// expressions...

'[' (']' { Seq{} }

| arg = KeyArg args = (',' KeyArg)* ']' { Seq{arg | args} }).

KeyArg ::=

name = Name '=' exp = Expr

{ KeyArg(name,exp) }.

Keywordp ::=

// A keyword instantiation pattern that matches an
// object that is an instance of the classifier
// designated by the path and whose slots match
// the patterns designated by the keyword patterns...

name = Name names = ('::' Name)* '[' keys = Keyps ']'

{ Keywordp(name,names,keys) }.

Keyps ::=

key = Keyp keys = (',' Keyp)* { Seq{key | keys} }

| { Seq{} }.

Keyp ::=

name = Name '=' pattern = Pattern

{ Keyp(name,pattern) }.

LetBody ::=

// A let-expression may contain sequential bindings using
// the 'then' keyword. These are flattened in the parser
// by nesting let-expressions...

'in' body = Expr { body }

| 'then' bindings = Bindings body = LetBody { Let(bindings,body) }.

LetExp ::=

// A let-expression parses includes some bindings and then
// a body. The body may include some sequential bindings that
// are desugared in the parser as nested let-expressions...

l = LinePos

'let' bindings = Bindings

body = LetBody 'end'

{ Let(l,bindings,body) }.

Lift ::=

l = LinePos

'[|' e = Exp '|]'

{ Lift(l,e) }.

LocalParserImport ::=

// A local parser import allows name-spaces to be added
// to the current parse for use when at-expressions are
// encountered...

'parserImport'

name = Name names = ('::' Name)*

{ Seq{name | names} }

ImportAt

'in' e = Expr 'end'

{ ParserImport(Seq{name | names},e) }.

LogicalExp ::=

// Sometimes used as an entry point to avoid the use
// of ';'...

e = SimpleExp

{ resolve(order(e)) }.

NonEmptySeqTail(l) ::=

e = Expr

PairOrElements^(l,e).

Objectp ::=

// An object pattern involves a path that designates a
// class and a sequence of patterns. The class should define
// a constructor with the same arity as the number of
// patterns. The constructor is used to designate the slots
// whose values are matched against the component patterns...

name = Name names = ('::' Name)*

'(' slots = Patterns ')'

{ Objectp(name,names,slots) }.

Op ::=

BinOp!

| ';' { ";" }.

OpType ::=

// Operations can be specified to have a type that defines
// their argument types and their return type...

domains = TypeArgs '->' range = TypeExp { OpType(domains,range) }.

OptType ::=

// A binding may onclude an optional type after ':'...

':' TypeExp

// The syntax construct NamedType defaults the path
// to XCore::Element...

| { NamedType() }.

PairOrElements(l,e) ::=

'|' t = Expr '}'

{ ConsExp(e,t) }

| es = (',' Expr)* '}'

{ SetExp(l,"Seq",Seq{e|es}) }.

Pairp ::=

'Seq{' head = Pattern '|' tail = Pattern '}'

{ Consp(head,tail) }.

ParserImport ::=

// A parser import occurs at the head of a compileration or evaluation
// unit and adds a name-space to the current collection of name-spaces
// used to resolve the paths found in at-expressions...

'parserImport'

name = Name names = ('::' Name)* ';'

// construct the path...

{ Seq{name | names} }

// Add the name-space designated by the path to the
// current parse engine...

ImportAt.

Parentheses ::=

// Retain the user's parentheses since they are important
// when processing the syntax tree with respect to associativity
// and precedence rules...

'(' e = Expr ')'

{ Parentheses(e) }.

PathExp ::=

// A path expression is rooted in an atom (usually a variable)
// and followed by a sequence of names...

atom = Atom

( '::' name = AName names = ('::' AName)*

{ Path(atom,Seq{name | names}) }

| { atom }).

Pattern ::=

p = AddPattern

es = PatternTail*

p = { es->iterate(e s = p | Includingp(s,e)) }

PatternGuard^(p).

PatternGuard(p) ::=

'when'

e = Exp

{ Condp(p,e) }

| {p}.

PatternTail ::=

'->' Name '(' p = Pattern ')'

{ p }.

Patterns ::=

head = Pattern tail = (',' Pattern)* { Seq{head | tail} }

| { Seq{} }.

Self ::=

l = LinePos

'self'

{ Self(l) }.

SetExp ::=

// Note that set-expressions are used to represent
// both sets and (proper) sequences. The difference
// in the abstract syntax is designated by "Set" or
// "Seq"...

l = LinePos

'Set{' es = CommaSepExps '}'

{ SetExp(l,"Set",es) }.

SeqExp ::=

// A seq-expression starts with a Seq( and then
// may be empty, a pair, or a proper sequence...

l = LinePos

'Seq{'

(EmptySeqTail^(l) | NonEmptySeqTail^(l)).

Seqp ::=

'Seq{'

head = Pattern

tail = SeqpTail

{ Consp(head,tail) }.

SeqpTail ::=

',' head = Pattern

tail = SeqpTail

{ Consp(head,tail) }

| '}'

{ Constp(SetExp("Seq",Seq{})) }.

SimpleExp ::=

'not' e = SimpleExp { Negate(e) }

| '-' e = SimpleExp { BinExp(IntExp(0),"-",e) }

| a = Apply SimpleExpTail^(a).

SimpleExpTail(a) ::=

o = BinOp! e = SimpleExp { BinExp(a,o,e) }

| { a }.

StrExp ::=

l = LinePos

e = Str

{ StrExp(l,e) }.

Strp ::=

s = Str

{ Constp(StrExp(s)) }.

Syntaxp ::=

'[|' e = Exp '|]'

{ Syntaxp(e) }.

Throw ::=

l = LinePos

'throw'

value = SimpleExp

{ Throw(l,value) }.

TopLevelExp ::=

s = SimpleExp ';'

{ resolve(order(s)) }.

TopLevelCommand ::=

c = SimpleExp

p = pState

{ p.consumeToken := false } ';'

{ resolve(order(c)) }.

TypeExp ::=

// Type-expressions designate classifiers. They are either
// named (via paths), parametric (a classifier applied to
// some arguments) or an operation type...

path = TypePath (args = TypeArgs { ParametricType(path,args) }

| { NamedType(path) })

| Drop

| OpType.

TypeArgs ::=

'(' arg = TypeExp

args = (',' TypeExp)* ')'

{ Seq{arg | args} }.

TypePath ::=

name = Name names = ('::' Name)*

{ Seq{name | names}->collect(n | Symbol(n)) }.

Try ::=

l = LinePos

'try'

body = Expr

'catch'

'(' name = Name ')'

handler = Expr

'end'

{ Try(l,body,name,handler) }.

VarExp ::=

name = Name

l = LinePos

{ Var(name,l) }.

Varp ::=

name = AName

pattern =

( '=' Pattern

| { null }

)

type =

( ':' TypeExp

| { NamedType() }

)

{ Varp(name,pattern,type) }.

end
To top.

Operation Grammar

@Grammar extends OCL::OCL.grammar

Operation ::=

// The name of an operation is optional. If
// specified it can be a dropped string...

name = OpName

// Properties are optional in [ and ]...

ps = Properties

// Args must be specified, but may have optional
// types and the optional multiple argument at the
// end after a '.' ...

'(' args = OpArgs multi = OpMulti ')'

// The return type of an operation is optional...

type = ReturnType

// The body of an operation is a sequence of
// expressions...

body = Exp+

'end'

// Get the current parse state so that we can get
// hold of the current imports...

p = pState

// Create the operation...

{ ps->iterate(p x = Operation(name,args + multi,type).add(body).setIsMultiArgs(not multi->isEmpty).setImports(p.imports->excluding(XCore)->excluding(Root)->map("pathSeq")) |
[| <x>.setProperty(<StrExp(p->at(0))>,<p->at(1)>) |]
)
}.

OpName ::=

// An operation name is optional. It may be a
// dropped string or just a name. If a name is
// not specified then the name anonymous is used...

name = AName { if name.isKindOf(String) then Symbol(name) else name end }
| { Symbol("anonymous") }.

OpArgs ::=

arg = OpArg args = (',' OpArg)* { Seq{arg | args } }
| { Seq{} }.

OpArg ::=

// Operation arguments are patterns. If you
// want to drop a pattern in then it requires a ! in front...

Pattern
| '!' Drop.

OpMulti ::=

// Multi-arg operations have the final argument after
// a '.'. At run-time the rest of the supplied arguments
// are supplied as a sequence...

'.' multi = Pattern { Seq{multi} }
| { Seq{} }.

ReturnType ::=

':' TypeExp
| { NamedType() }.

Properties ::=

'[' p = Property ps = (',' Property)* ']' { Seq{p|ps} }
| { Seq{} }.

Property ::= n = Name '=' e = Exp { Seq{n,e} }.

end
To top.
