Dealing with Choice

Contents

Overview

Processing information is a linear activity. Listen to anyone describing how something is performed and you will hear phrases like: 'first get an X, turn it into a Y and feed it into the Z'. This is great because mechanical processing of models is a linear activity too; there is a close correspondence between real-world processes and their modelled equivalent.

However, things are often not that simple. On closer inspection a process can often be more like: 'select an X, find a way to turn it into a Y and feed it into one of the Zs'. In this case processing is not so obviously linear. What happens if the X that is selected turns out to be the wrong choice when trying to make a Y? Can we go back and try another X? If no Z is available who is at fault: the X or the choice of Y?

The world is full of choices. Modelling the world often needs to take account of choice. Once choice is admitted into a process, the scope of the choice becomes an important issue. How far can processing proceed before a particular choice cannot be undone? In a linear activity, undoing a choice within a particular scope is called backtracking, i.e. returning to the last choice point, selecting an alternative and re-processing from that point.

Choice (or equivalently non-determinism) is a property of a model. Backtracking is a property of the execution engine for the model. Backtracking is a way of implementing choice as a linear activity; it is an important and often occurring pattern. This section is about how to implement the pattern.

To top.

A Choice Pattern

Choice tends to occur as a pattern involving:
Each use of this pattern tends to be slightly different in the detail. But the principle is generally the same. The pattern can be encoded as follows:
(1) @Operation select(S,next,fail)
(2) if S->isEmpty
(3) then fail()
else
(4) let e = S->sel then
(5) S = s->excluding(e)
(6) in next(x,@Operation() select(S,next,fail) end)
end
end
The operation select (1) encodes the pattern. It takes 3 arguments: S a set of elements to choose from, the activity to do next and a fail for backtracking. The next activity is encoded as an operation that is expecting an element and a fail. The fail argument is encoded as an operation that takes no arguments and jumps to the last choice point to choose an alternative.

The idea is that the next operation contains all future processing for a selected element. Cruicially, the next operation may be invoked more than once with different choices from S. Lines (4-6) show this occurring, where an element e is selected from S and supplied to next. The failure argument supplied to next is a new choice point; if it is ever invoked then select is called again with fewer options to choose from, but the same next and fail. Therefore, select can cause the same next argument to be invoked multiple times with different elements chosen from S.

If select is ever invoked with no options (2) then the initial failure argument is chosen. This allows chaining of different uses of select.

A slight variation on this pattern is the inclusion of a predicate that controls whether the chosen element is valid or not:
(1) @Operation select(S,next,pred,fail)
(2) if S->isEmpty
(3) then fail()
else
(4) let e = S->sel then
(5) S = s->excluding(e)
(6) in if pred(e)
(7) then next(x,@Operation() select(S,next,pred,fail) end)
(8) else select(S,next,pred,fail)
(9) end
end
end
The predicate is used in (6) to test the element. If pred is satisfied then next is invoked as before (7), otherwise alternatives are tried (8).

This pattern can be encoded as a language construct. The basic mechanism involves repeated selection from a supplied set of alternatives. The grammar below uses a locally defined recursive operation to continually backtrack though the elements of a supplied set:
@Grammar extends OCL::OCL.grammar
Select ::=
'(' e = Name ',' f = Name ')' 'from' s = Exp
test = ('when' Exp | [| true |]) 'do'
body = Exp
'else' fail = Exp 'end'
{ [|
@Letrec
select =
@Operation(S,<f>)
if S->isEmpty
then <Var(f)>()
else
let <e> = S->sel then
S = S->excluding(<Var(e)>) then
<f> = @Operation() select(S,<Var(f)>) end
in if <test>
then <body>
else <f>()
end
end
end
end
in select(<s>,@Operation() <fail> end)
end
|] }.
end
Instead of defining a selection operation each time choice is used, the selection construct can be used as follows:
@Select(e,f) from S do
next(e,f)
else fail()
end
The variable e is initially bound to an element selected from the set S and the body of the construct (after the do) is performed. The variable f is bound to an operation; is f is ever invoked (with 0 args) then another element of S is selected and the body is performed again. Subsequent uses of f have the same effect until S is exhausted at which point the alternative part of the construct (after the else) is performed.
Sacks
Consider a situation, shown above  where two sacks contain an arbitrary collection of numbered balls. Balls are selected from each sack in turn and placed in a line. The idea is to wind up with a sequence of balls whose numbers form an ascending sequence.

Since it is not permitted to look inside the sacks when selecting a ball, things can go wrong at some point during the process; although it is always possible to select the balls in a way that achieves the desired outcome. If things go wrong then balls can be put back (balls are appropriately marked as to which sack they came from), and the selection restarted from any point.

The sacks can be modelled as follows:
@Class Sack
@Attribute balls : Set(Integer) end
@Attribute other : Sack (!,?) end
@Constructor(balls) ! end
end
where two sacks are set up as follows:
let s1 = Sack(Set{1,7,3,5,9});
s2 = Sack(Set{8,2,6,4,10})
in s1.setOther(s2);
s2.setOther(s1)
end
The process of selection is to be modelled as an operation on Sack that builds a sequence of integers (balls) by ping-ponging between the receiver and 'other', each optionally adding an integer. What happens when there are balls left to choose, but which cannot be added to the sequence because their numbers are too low? Is it always possible to select so that this situation does not occur? Inspection of the rules shows that this is not the case (the contents of the other sack cannot be inspected). Therefore, a stalemate situation can occur, therefore backtracking is a candidate modelling technique.

The rest of this section builds up the implementation of an operation defined by Sack for ordering the elements selected from two sacks. The operation is called with no arguments:
@Operation order()
(1) self.order(Seq{},
(2) @Operation(orderedBalls,next,fail)
(3) other.order(orderedBalls,
(4) @Operation(orderedBalls,next2,fail)
(5) next(orderedBalls,next2,fail)
(6) end,fail)
end,
(7) @Operation()
"Error!"
end)
end
The ordering operation needs to initialise the ordered balls and create an initial next and fail. Line (1) calls a second Sack operation called order that has these as arguments. The initial collection of ordered balls is Seq{} (1), the initial next operation and fail are supplied in lines (2) and (7).

In this example, each next takes 3 arguments: the current sequence of ordered balls, a next for the other sack and a fail. At line (2) the initial next calls the ordering operation for the other sack (3) passing it a next at (4) that ping-pongs back.

The initial fail (7) returns an error value because it should always be possible to order the balls, i.e. this should never occur.

The second order operation is defined as follows:
@Operation order(orderedBalls,next,fail)
(1) if not other.allChosen(orderedBalls)
then
(2) self.order(orderedBalls,balls,next,
(3) @Operation()
next(orderedBalls,
(4) @Operation(orderedBalls,next,fail)
(5) self.order(orderedBalls,next,fail)
end,fail)
end)
(6) else self.order(orderedBalls,balls,next,fail)
end
end
If the other sack is empty (1) then the selection continues with the current sack (7). If the other sack is not empty then there is a choice: add an element from the current sack (2) and continue or just continue. This alternative is encoded by extending the fail (3) so that if things go wrong, the curren sack is skipped. If it is skipped then play resumes with the current sack due to the next continuation (4-5).

The final operation uses Select to continually select from the available balls:
@Operation order(orderedBalls,balls,next,fail)
if balls->isEmpty
then orderedBalls
else
@Select(ball,f) from balls
when not orderedBalls->exists(b | b > ball) do
next(orderedBalls + Seq{ball},
@Operation(orderedBalls,next,fail)
let balls = balls->excluding(ball)
in self.order(orderedBalls,balls,next,fail)
end
end,f)
else fail()
end
end
end

To top.

Finding a Route

UK Roads
Figure  shows a map of the UK with locations and roads. One way of modelling this information is using the graph construct defined in section :
@Graph(Routes,City,Road)
Birmingham()
Brighton()
Bristol()
A48 -> Swansea
Carlisle()
A74 -> Glasgow
A69 -> Newcastle
Glasgow()
M8 -> Edinburgh
M80 -> Perth
London()
M23 -> Brighton
A12 -> Ipswich
A41 -> Oxford
A3 -> Portsmouth
M4 -> Bristol
M1()->Leeds
A1()->Peterborough
M11()->Cambridge
Hull()
Ipswich()
Leeds()
M62()->Bradford
M62 -> Hull
A1()->Newcastle
Oxford()
M40 -> Birmingham
Perth()
M90 -> Edinburgh
Portsmouth()
Swansea()
Bradford()
M62()->Manchester
Newcastle()
A1()->Edinburgh
Manchester()
M61 -> Preston
Preston()
M6 -> Carlisle
Peterborough()
a1 -> Newcastle
Cambridge()
Edinburgh()
A91()-> Dundee
Dundee()
A956()->Aberdeen
Aberdeen()
end
Each node of the graph is a city. Each edge of the graph is a road labelled with its name. For example from London it is possible to go to Brighton using the M23 (and vice versa), and possible to go to Bristol using the M4.

Consider how to find a route from one city to another. Suppose you want to get from London to Carlisle. It is possible via the M1, A1 and then A69. Alternatively, you could go A1, A1, A69. In principle there are many routes between two cities. Ignoring distance and other criteria that might lead to selecting one route over another, the only rule that should be applied is that a route does not pass through the same city twice.

How might the construction of a route be modelled? Given a start and end city, if there is a road linking the two then a route is found. Otherwise, any road from the start (or end) can be selected leading to a new start (or end) point. Given the new start (or end) then the process can be repeated until it can be shown that no route exists (remember you cannot go through the same city twice) or a route is found. Given that choices are made, if no route can be found then backtracking can b employed to return and make an alternative choice.

The class Routes extends Graph with an operation for finding a route:
(1) @Operation route(source:String,target:String)
(2) self.route(Set{},source,target,
(3) @Operation(usedRoads,path,fail)
(4) path
end,
(5) @Operation()
"NONE"
end)
end
Given the names of the source and target cities (1), a route is consructed by calling another operation with a set of used roads, the source, target, a next (3) and a fail (5). The initial fail is invoked when no route exists, it returns the special no-route-available value NONE.

A next expects a set of used roads, a path and a fail. The path links the source and target cities and is a sequence of road names.

The second route operation is defined below:
@Operation path(usedRoads,source,target,next,fail)
if source = target
then succ(usedRoads,Seq{},fail)
else
@Select(road,otherRoad)
from self.edgesIncidentOn(source) - usedRoads do
self.pathAfter(
usedRoads,source,target,road,otherRoad,next,fail)
else
@Select(road,otherRoad)
from self.edgesIncidentOn(target) - usedRoads do
self.pathBefore(
usedRoads,source,target,road,otherRoad,next,fail)
else fail()
end
end
end
end
@Operation pathAfter(usedRoads,source,target,road,otherRoad,succ,fail)
self.path(usedRoads->including(road),road.otherEnd(source),target,
@Operation(usedRoads,path,fail)
 succ(usedRoads,Seq{road.label()} + path,fail)

end,
otherRoad)
end

@Operation pathBefore(usedRoads,source,target,road,otherRoad,succ,fail)
self.path(usedRoads->including(road),source,road.otherEnd(target),
@Operation(usedRoads,path,fail)
succ(usedRoads,path + Seq{road.label()},fail)
end,
otherRoad)
end

To top.

Explanation and NoGood Sets

Patterns of search (as described above) can be encoded using language constructs. Typically these involve success and failure continuations that maintain the state of the search and provide a convenient mechanism for branching. Continuations make it easy to backtrack when it is found that an incorrect branch has been selected. These techniques work well for finding a configuration amongst a number of alternatives such that the configuration satisfies a given condition. However, extra work is required to explain the lack of a satisfactory configuration.

One technique is to invert the condition that selects a correct configuration and to use it to explain why no satisfactory configuration could be found. Instead of selecting a single satisfactory configuration, such an inversion produces a collection of configurations, each of which has a problem. Such configurations are sometimes referred to as noGood sets. This section describes an application that uses search to select a configuration of business components; noGood sets are used to explain why a solution cannot be found.

Consider developing a business plan. The business must set out its goals in terms of what the business wants to achieve. Each goal is supported by a collection of tactics each of which describes an activity or approach that claims to achieve the goal. In addition, a goal may be decomposed into a collection of child goals; achieving all the child goals individually is the same as achieving the overall goal. In order to implement a given tactic it is necessary to allocate some resource. Resource is provided by organizational units, which may be company departments or individuals.

A goal may be achieved if it has a supporting tactic that is adequately resourced; or may be achieved if all of its children are achieved by the same rule. It is important that a company does not over-commit its resources, therefore a goal can only be achieved if the unit resource limits are not exceeded.

Here is a high-level goal for a telephone banking business:

Goal

The business will be successful if it has happy customers. This goal can be decomposed into any number of sub-goals:

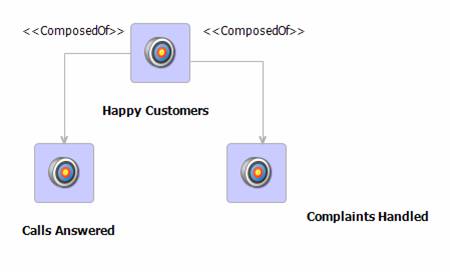

Subgoals

where a customer is happy if their calls are answered effectively and their complaints are handled. Each of the sub-goals has any number of tactics that will achieve the goal:

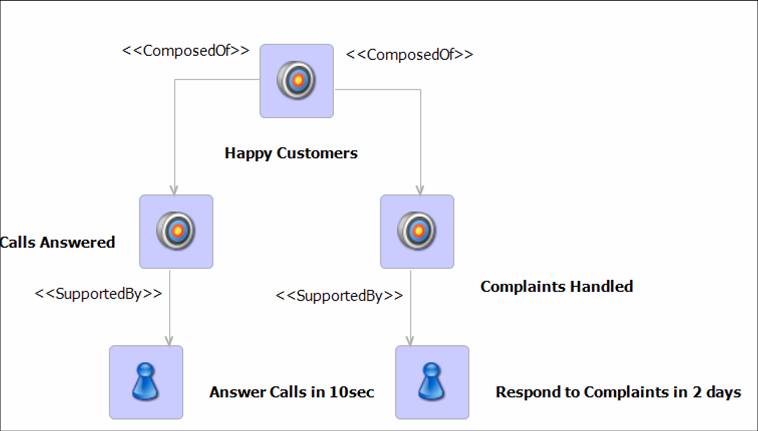

Tactics

Finally, the tactics need to be resourced by an organization unit. A unit may resource more than one tactic and a tactic may be resourced by more than one unit. In this case the unit is a telephone call centre:

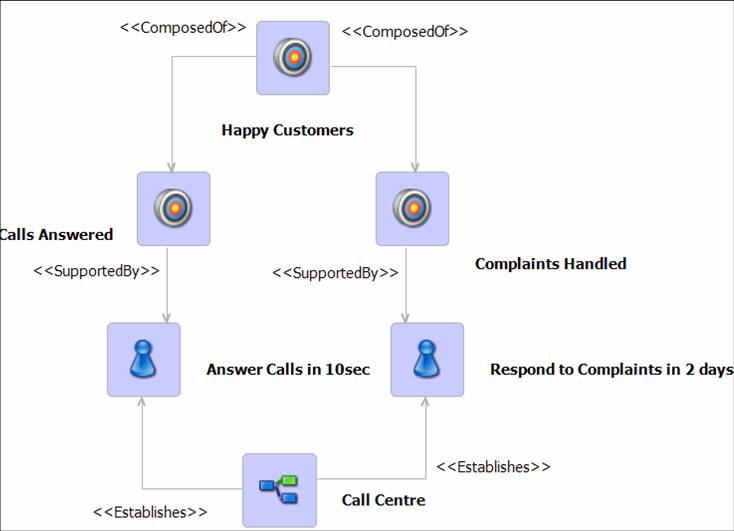

Units

The models shown above can be used as part of a business as a decision support solution. Each model describes the goals the business intends to achieve and how the goals are to be implemented and resourced. The solution provides feedback in terms of the options for resourcing the tactics that achieve the goals. If the goals cannot be achieved then the solution will provide feedback on why the different resourcing options fail.

The rest of this section is in two parts: the first part describes how an engine is defined that finds a resourcing solution; the second part describes how noGood sets are used to provide feedback when there is no solution.

BMM Model


Results

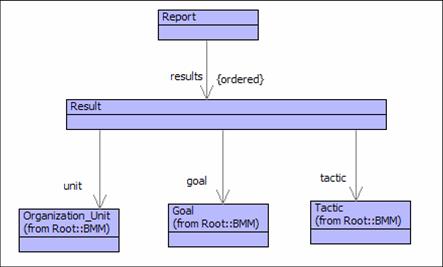

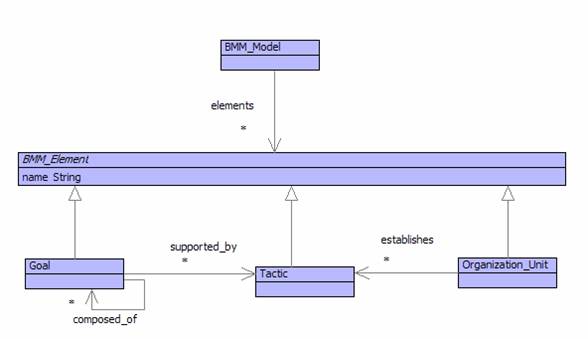

Figure  shows a model of the business concepts used by the solution. Figure  shows a report model that is produced when there is a solution consisting of a collection of results each of which associates a goal, a tactic and an organization unit.

The following rules are applied to find a solution. A goal g is achievable when:
  1. g is supported by at least one tactic that is established by at least one organization unit; or
  2. g has at least one sub-goal and each sub-goal is achieved; and
  3. the number of tactics supported by each unit does not exceed the resource for the unit.
The rules are implemented as an operation called achievable that is defined below. The arguments of the operation form the context for the achievable-engine. It is supplied with a goal, a table of resources, the current results and continuations for success and failure. The table of resources is an a-list mapping unit names to the current amount of resource available for that unit. The results are just a collection of result instances.
context BMM_Model
@Operation achievable(goal,resources,results,succ,fail)
@Select tactic:Tactic from goal.getSupported_by() do
@Select unit:Organization_Unit from self.getElements()
when unit.establishes(tactic)
do @Result(goal,tactic,unit)
@Use(unit) end
end
end
else
@Unless goal.getComposed_of().isEmpty() do
@ForAll child in goal.getComposed_of() do
self.achievable(child,resources,results,succ,fail)
end
end
end
end
The success and fail continuations are used to implement a backtracking mechanism. The rules are implemented by the achievable-engine in terms of search. A choice-point arises when there is more than one tactic that could be chosen to support a goal and when there is more than one unit that could be chosen to establish a tactic. In both cases, one of the options is chosen and a choice point is created that will be used if ever the search fails.

Failure occurs when a goal cannot be achieved because it has no tactics or a tactic has no establishing unit. The resource associated with a unit is reduced by 1 each time the unit is used to establish a tactic. Once the count reaches 0 the unit cannot be used again; a subsequent attempt to select the unit causes backtracking.

The achievable-engine uses language constructs that are specifically designed to support the business solution. These constructs are: Select which is used to select from a collection; Result which is used to produce a result; Use which is used to reduce the amount of available resource for a unit; Unless which is used to place a guard on an action; and, ForAll which is used to require a condition holds for all element of a collection. These language constructs use the arguments of the engine as 'globals' and are implemented as follows.

The language construct for Select uses the selection operation to try each element of a collection:
context Root
@Class Select extends Sugar
@Attribute var : String end
@Attribute type : Performable end
@Attribute collection : Performable end
@Attribute body : Performable end
@Attribute guard : Performable end
@Attribute alt : Performable end
@Constructor(var,type,collection,guard,body,alt) ! end
@Grammar extends OCL::OCL.grammar
Select ::=
v = Name ':' t = Exp 'from' c = Exp g = Guard 'do'
b = Exp a = Alt 'end' {
Select(v,t,c,g,b,a)
}.
Guard ::=
'when' Exp
| { [| true |] }.
Alt ::=
'else' Exp
| { [| fail() |] }.
end
end
The desugar operation for Select builds up a choice-point through the fail continuations:
context Select
@Operation desugar()
[| let // Filter on the type of the elements...
C = <collection>.asSeq()->select(x |
x.isKindOf(<type>)) then
// Filter using the guard...
C = C->select(<var> | <guard>) then
// Set up the action to perform...
action =
@Operation(<var>,fail)
<body>
end then
// The final fail performs the alternative action...
finalFail =
@Operation()
<alt>
end then
// Build up the choice-tree using fails...
fail = C->iterate(x fail = finalFail |
@Operation()
action(x,fail)
end)
in // Perform the first choice...
fail()
end |]
end
The Result construct adds a new result to the current collection of results. This establishes a new collection of results for the scope of the Result body:
@Class Result extends Sugar
@Attribute goal : Performable end
@Attribute tactic : Performable end
@Attribute unit : Performable end
@Attribute body : Performable end
@Constructor(goal,tactic,unit,body) ! end
@Grammar extends OCL::OCL.grammar
Result ::= '(' g = Exp ',' t = Exp ',' u = Exp ')'
b = Exp 'end' {
Root::Result(g,t,u,b)
}.
end
@Operation desugar()
[| let result = Result(<goal>,<tactic>,<unit>) then
results = results->including(result)
in <body>
end
|]
end
end
When a unit is used to establish a tactic, the number of resources associated with the unit must be reduced by one. However a unit cannot use more resource than it owns, therefore if the resources are exhausted for the required unit then engine uses fail to select an alternative:
@Class Use extends Sugar
@Attribute unit : Performable end
@Attribute body : Performable end
@Constructor(unit,body) ! end
@Grammar extends OCL::OCL.grammar
Use ::= '(' u = Exp ')' b = Body 'end' {
Use(u,b)
}.
Body ::=
Exp
| { [| succ(resources,results,fail) |] }.
end
@Operation desugar()
[| let name = <unit>.getName() then
resource = resources.lookup(name)
in if resource = 0
then fail()
else
let resources = resources.bind(name,resource - 1)
in <body>
end
end
end |]
end
end
The Unless construct simply places a guard on an action; if the guard fails then an alternative is found using the fail continuation:
@Class Unless extends Sugar
@Attribute guard : Performable end
@Attribute body : Performable end
@Constructor(guard,body) ! end
@Grammar extends OCL::OCL.grammar
Unless ::= g = Exp 'do' b = Exp 'end' {
Unless(g,b)
}.
end
@Operation desugar()
[| if <guard>
then fail()
else <body>
end
|]
end
end
The ForAll construct requires a condition to hold for all elements of a collection. This is achieved using the success continuation; each element of the collection is selected and the success continuation returns to the collection to try the next element:
@Class ForAll extends Sugar
@Attribute var : String end
@Attribute collection : Performable end
@Attribute body : Performable end
@Constructor(var,collection,body) ! end
@Grammar extends OCL::OCL.grammar
ForAll ::= v = Name 'in' c = Exp 'do' b = Exp 'end' {
ForAll(v,c,b)
}.
end
@Operation desugar()
[| let next =
@Operation(<var>,resources,results,succ,fail)
<body>
end
in <collection> ->iterate(x succ = succ |
@Operation(resources,results,fail)
next(x,resources,results,succ,fail)
end )
end |]
end
end
That concludes the language constructs for the achievable-engine. The search is controlled using continuations so that all possible combinations of goal, tactic and unit are tried to see if they are compatible. When an illegal combination is encountered, the fail continuation is used to backtrack. Therefore, the engine will find a suitable collection of results if they exist.

When no suitable combination of business elements exists, the engine returns no value. It simply reports that the goal cannot be achieved. The rest of this section describes how a noGood sets can be constructed to explain the reasons why a solution cannot be found.

A noGood set is a combination of goals, tactics and units that invalidates the achievable rules defined earlier. The rules are invalidated when a goal has no tactics, when all tactics for a goal lack suitable organization units, or when all the sub-goals of a goal invalidate the rules. When no valid solution can be found for a goal, it is safe to assume that at least one noGood set exists for the goal; there may bemore than one noGood set and it is useful to report all of them.

The following operation constructs the noGood sets for a goal:
context BMM_Model
@Operation noGoods(goal)
self.noTacticsOrChildren(goal) +
self.noEstablishingUnits(goal) +
self.overusedUnits(goal) +
self.failingChildren(goal)
end
There are four reasons for a noGood set. Each reason is implemented as a separate operation. The first operation constructs a singleton set Unachievable(g) when the goal g has no tactics and no children:
context BMM_Model
@Operation noTacticsOrChildren(goal)
@Cmp [Set] Set{Unachievable(goal)} where
? goal.noChildren() and
goal.noTactics()
end
end
If a goal has a tactic with no establishing units then a noGood set contains Unestablished(g,t):
context BMM_Model
@Operation noEstablishingUnits(goal)
@Cmp [Set] Set{Unestablished(goal,tactic)} where
tactic <- goal.tactics(),
? self.noEstablishingUnit(tactic)
end
If a goal has a tactic with a unit then, since we know that there are no good sets, the unit must be overused (or the noGood set is incomplete). The following operation records allocations that will become illegal when combined with other elements:
context BMM_Model
@Operation overusedUnits(goal)
@Cmp [Set] Set{Allocation(goal,tactic,unit)} where
tactic <- goal.tactics(),
unit <- self.establishingUnits(tactic)
end
Finally, each of the children of a goal must fail in a noGood set. The following operation calculates the noGood sets for each child and then combines them:
context BMM_Model
@Operation failingChildren(goal)
@Iterate1 child <- goal.children()
initially NG = Set{Set{}} do
@Cmp [Set] options1 + options2 where
options1 <- self.noGoods(child),
options2 <- NG
end
else Set{}
end
end
Finaly, each noGood set must be interpreted to produce an explanation of why a good set could not be produced. The following operation translates the noGood sets into strings that explain why each fails:
context BMM_Model
@Operation noGoodDisplays(NGs)
@Cmp [Set] u.goal.getName() + " has no tactics or children." where
NG <- NGs,
u:Unachievable <- NG
end +
@Cmp [Set] u.goal.getName() +
" cannot be established by " +
u.tactic.getName() +
" because it has no supporting units." where
NG <- NGs,
u:Unestablished <- NG
end +
@Cmp [Set] o.getName() + " is overused." where
NG <- NGs,
o:Organization_Unit <- self.getElements().asSeq(),
? @Cmp a where
a:Allocation <- NG,
? a.unit = o
end->size > self.resources().lookup(o.getName())
end
end

To top.

String Matching


To top.


Generating Snapshots and Filmstrips


To top.


XRules and Type Checking


To top.


Planning


To top.
